Мобилен 3D лазерен скенер XGRIDS Lixel L3 – PrecisionPro

XGRIDS Lixel L3 — Mobile 3D Laser Scanner

by XGRIDS
€0,00 - €0,00
€0,00
€0,00 - €0,00
€0,00

Free delivery

Product specifications

The XGRIDS Lixel L3 combines LiDAR, panoramic cameras, an inertial unit and built-in RTK for capturing buildings, terrain and engineering structures. It comes with 16 or 32 channels, a range of 0.7–120 m and speeds of up to 640,000 points/s in the 32-channel configuration.

The built-in 4.3″ display lets you control and review scans without a phone. Data can be processed into a colour point cloud, mesh and 3D Gaussian Splatting for measurement, CAD/BIM and spatial visualisation.

Попитайте за документация.

Vision System

1/1.3″ CMOS · 4K HDR
Two panoramic cameras and a front camera

LiDAR Scanning

Range up to 120 m
320,000 / 640,000 points/s
16 / 32 channels

Swappable Battery

Fits into the handle
Up to 100 min of operation
Easy battery swap

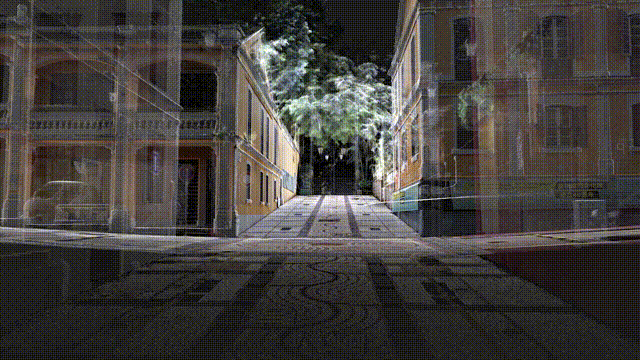

Accurate Structure, True Colour

Accurate Structure, True Colour

High-accuracy geometry and high-resolution imagery are combined, so the point cloud carries both the structure and the true colour of the site. You understand the scene at a glance, and objects are easier to identify and measure – measurement, modelling and client presentation all work from the same data.

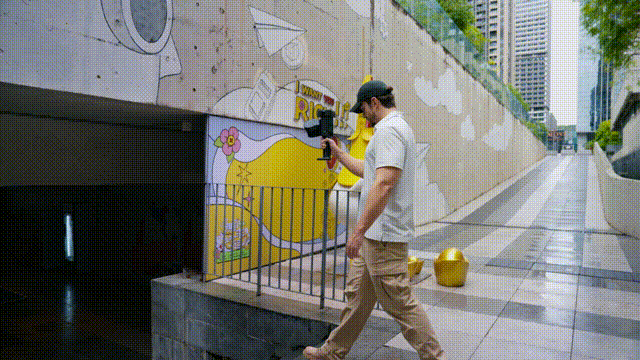

Detail in Highlights and Shadows

Detail in Highlights and Shadows

4K HDR imaging preserves detail in both the brightest and darkest parts of the scene – bright surfaces don’t blow out and shaded areas don’t lose detail. Transitions between them stay natural across the whole scene.

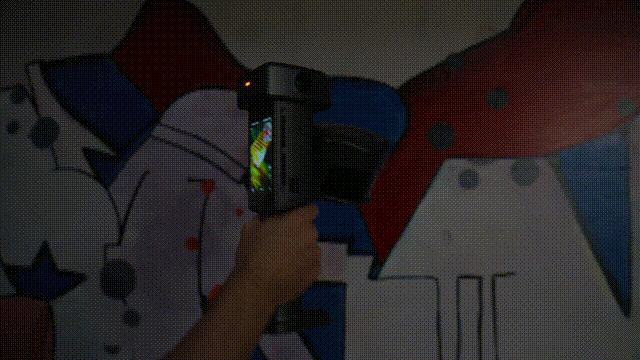

Clear Results Even in Low Light

Clear Results Even in Low Light

In low light the L3 produces point clouds with less noise and less colour distortion. Less grain, fewer false colours and cleaner data for processing.

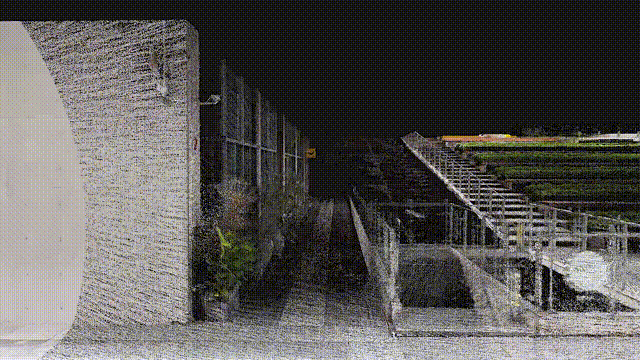

More Detail Where You Need It

More Detail Where You Need It

Select specific areas for additional enhancement – key zones get more spatial detail while processing time and file size stay under control.

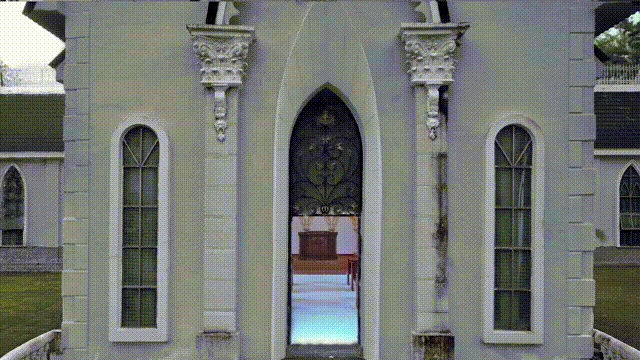

Colour and Detail in Every Output

Colour and Detail in Every Output

From a single scan you get a high-accuracy colour point cloud, a detailed mesh model and a photorealistic 3D Gaussian Splatting model – all from the same data. Accurate geometry, clean texture and a realistic look cover different tasks – from visualisation and professional measurement to digital twins – with a single trip to the field.

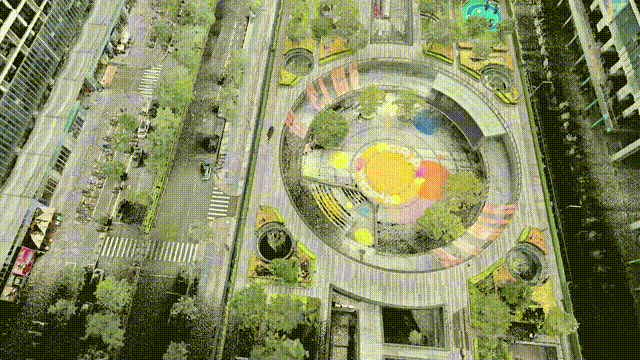

Complete Data in Any Conditions

During long continuous scans, with weak GNSS signal or on surfaces with few distinctive features, the L3 combines its built-in RTK with multiple sensors to keep the model stable. Less drift and usable data from the very first site visit.

A Clean Cloud While You Scan

Built-in AI detects and removes people, vehicles and environmental noise while you scan – no smears or “ghost” trails left by moving objects. The exported cloud needs less manual clean-up and reaches measurement, modelling and client delivery sooner.
